The Enduring Legacy of DIP Packages

A Foundation Built on Thoughtful Standardization

When Fairchild Semiconductor unveiled the DIP package in the 1960s, it quickly became a cornerstone of integrated circuit design. Its thoughtful structure provided a practical way to enclose silicon chips, offering robust and reliable connections to the outside world. That familiar rectangular body, with its two parallel rows of pins, was nothing short of revolutionary for its time, a significant leap forward from earlier, more cumbersome packaging methods.

A key factor in its rapid and widespread embrace was the standardization of its physical dimensions, especially the pin spacing. This shared understanding meant that automated assembly lines could be developed, PCB layouts could be consistently designed, and a rich ecosystem of compatible parts and tools could flourish. Just imagine the utter chaos if every manufacturer decided on their own unique pin spacing—it would be a logistical puzzle of epic proportions!

The remarkable longevity of the DIP package, even in an era now dominated by the sleek designs of surface-mount technology (SMT), speaks volumes about its effectiveness. For the weekend hobbyist, the eager student, and even in specific industrial settings, the through-hole nature of DIPs makes them incredibly forgiving and wonderfully simple to work with, especially when you're breadboarding an idea or trying out a new concept. This inherent ease of use is directly linked to that consistent and wonderfully predictable pin spacing.

So, while the landscape of electronics continually pushes towards smaller, denser components, the DIP package remains a cherished and immensely valuable part of our electronic vocabulary. Its continued presence is a testament to the robust design philosophies laid down decades ago, with that precise pin spacing sitting right at the very heart of its enduring success.

Dip Switch 10 Position Future Electronics Egypt

The Standard: What's the Magic Number?

Unpacking the Familiar 0.1-Inch Grid

When we talk about the spacing for DIP pins, there's one number that truly stands out: 0.1 inches, which translates to 2.54 millimeters. This is the bedrock pitch—the precise distance measured from the center of one pin to the center of its immediate neighbor within the same row. This seemingly specific number is a direct nod to the early days of electronics and the prevailing use of the Imperial measurement system in engineering at that time.

This 0.1-inch pitch isn't confined just to the pins within a single row. The rows themselves are also meticulously spaced at specific intervals. For most common DIP packages, the distance between the centers of the two pin rows can vary, but you'll frequently encounter standards like 0.3 inches (7.62 mm) for narrower DIPs, and a more generous 0.6 inches (15.24 mm) for wider ones. These consistent dimensions ensure that a DIP integrated circuit can effortlessly slide into a breadboard, a perfboard, or a custom-designed printed circuit board without any fuss.

The true genius of this standardization lies in its elegant simplicity and its universal application. Whether you're working in a cutting-edge laboratory in Silicon Valley or a cozy workshop in your own home, the 0.1-inch grid serves as a foundational blueprint for countless electronic endeavors. This unwavering consistency eliminates frustrating guesswork and allows for the smooth integration of components hailing from a diverse array of manufacturers.

It's almost like a silent, universal understanding among electronic components—everyone implicitly knows the 0.1-inch rule. This shared knowledge is absolutely vital for designers, as it precisely dictates the layout of pads and traces on a PCB, ensuring that the component settles perfectly into place without any agonizing alignment struggles. It genuinely streamlines the entire process of design and manufacturing, making the intricate dance of electronics a bit more graceful.

Why This Specific Spacing? The Engineering Wisdom

A Harmonious Blend of Practicality and Performance

The choice of 0.1 inches as the standard pin pitch wasn't a whimsical decision; it was the result of thoughtful deliberation, taking into account a tapestry of engineering considerations that were crucial when DIP packages first emerged. A primary factor was the sheer feasibility of manufacturing at the time. Early PCB fabrication methods and drilling technologies were less refined than they are today. A more generous spacing was far more forgiving for drilling precise holes and etching delicate traces, significantly reducing manufacturing errors and boosting successful production yields.

Beyond manufacturing, the 0.1-inch pitch provided ample elbow room for soldering. Whether done by hand with a steady touch or using the early automated soldering techniques, a wider pitch made it much simpler to create robust and reliable solder joints without inadvertently shorting adjacent pins. As anyone who has wrestled with intricate soldering knows, that little bit of extra space can be the difference between a triumphant connection and a frustrating, unsightly blob of solder.

Another incredibly important aspect was the human element. For manual insertion into sockets or onto breadboards, a 0.1-inch pitch offered a comfortable, visually distinct spacing that was easy to grasp and manipulate. Attempting to work with much smaller pitches would have made alignment and insertion far more challenging, particularly for general-purpose use. It’s a quiet testament to excellent design when it considers the user as much as the technical specifications.

Finally, thermal considerations also played a subtle but significant role. While not the singular deciding factor, a larger spacing naturally allows for better heat dissipation from the integrated circuit package. With more air circulating around the pins and a greater surface area for heat to radiate from, the component can operate more reliably, especially when under sustained workloads. This intelligent combination of manufacturability, ease of assembly, user-friendliness, and effective thermal management collectively cemented the 0.1-inch pitch as the optimal standard for DIP packages, a choice that has stood the test of time.

How To Prepare A New Steel Nib For Dip Pen Writing In 5 Minutes! YouTube

Implications for Design and Prototyping

Seamless Integration into the Electronic Tapestry

The standardized spacing of DIP pins beautifully simplifies the entire design and prototyping journey. When engineers embark on creating a new PCB, they don't have to reinvent the wheel for every DIP component they wish to include. The component footprints — those predefined patterns of pads and holes on the PCB where a component lovingly rests — are universally recognized and readily available within design software libraries. This saves an incredible amount of time and significantly lowers the likelihood of costly design missteps.

For the enthusiastic hobbyist and the dedicated educator, this consistent spacing is nothing short of a blessing when working with breadboards. Breadboards are, by their very design, built around that same 0.1-inch (or 2.54 mm) grid. This means DIP ICs slot into place with satisfying precision, allowing for swift and effortless circuit experimentation without ever needing to touch a soldering iron. This delightful plug-and-play compatibility has been absolutely instrumental in opening up the world of electronics to a wider audience, nurturing countless sparks of innovation and learning.

What's more, the sheer abundance of compatible accessories — think DIP sockets, various prototyping boards, and even specialized programming adapters — all lovingly adhere to this pervasive 0.1-inch standard. This creates a wonderfully robust and interconnected ecosystem where components and tools from a myriad of different manufacturers can be swapped in and out with effortless grace, fostering incredible flexibility and keeping costs wonderfully manageable.

In essence, the standardized DIP pin spacing acts as a universally understood language within the vibrant community of electronics enthusiasts and professionals. It frees designers to channel their creative energies into the circuit's functionality, rather than wrestling with frustratingly incompatible physical interfaces. This foundational standardization is a quiet, unsung hero in the vast landscape of electronics, subtly enabling countless groundbreaking innovations and making the intricate dance of circuit design just a little bit more approachable for everyone.

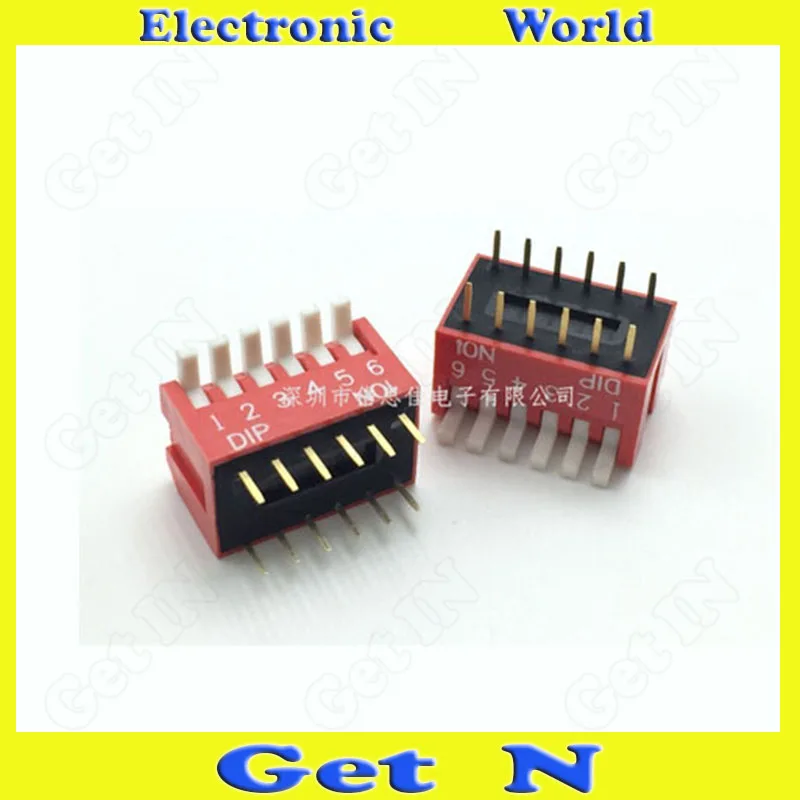

Buy 50pcs Key Style Side DIP Switch 2.54MM Pitch

Beyond DIP: The Evolution of Component Spacing

A Glimpse into Tomorrow (and a Nod to Yesterday!)

While DIP packages and their comforting 0.1-inch spacing continue to hold a relevant place, the world of electronics is a dynamic, ever-evolving landscape. The relentless pursuit of miniaturization and the desire for higher component density have paved the way for the development of surface-mount technology (SMT) packages. These often feature much finer pin pitches, a testament to incredible engineering ingenuity.

Packages like the familiar Small Outline ICs (SOICs) and the increasingly common Thin Shrink Small Outline Packages (TSSOPs) boast pitches that can range from a mere 1.27 mm (0.05 inches) down to an almost invisible 0.5 mm (0.02 inches) or even tinier. This incredible shrinkage allows for a vastly greater number of components to be nestled onto a smaller PCB area, leading to the creation of wonderfully compact and astonishingly powerful devices.

However, this march towards miniaturization doesn't come without its own unique set of delightful challenges, particularly when it comes to manufacturing and, for those brave enough, hand soldering. Specialized equipment, such as precision pick-and-place machines and sophisticated reflow ovens, become absolutely essential for assembling these minute SMT components with the required accuracy and reliability.

Even within the realm of through-hole components, while 0.1 inches remains the undisputed champion, you might occasionally stumble upon some older or truly specialized connectors that deviate ever so slightly from this standard. Yet, these are generally the rare exceptions that beautifully highlight the widespread adoption and sheer convenience of the 0.1-inch pitch for the vast majority of DIPs.

So, while we cherish the reliable and wonderfully user-friendly nature of DIP pin spacing, it's genuinely captivating to observe how technological strides continue to redefine the boundaries of component packaging and density. The journey from the comfortably spaced 0.1-inch pitch to the almost microscopic dimensions of modern SMT components is a vibrant testament to human ingenuity and the ceaseless quest for electronics that are ever smaller, faster, and more remarkably efficient. But for sheer ease of use, for those moments of pure prototyping joy, the humble DIP still holds a truly special place in our hearts (and most definitely on our breadboards!).

Preci Dip IC Socket Contact Spacing 7.62 Mm Number Of Pins 14 90

Frequently Asked Questions About DIP Pin Spacing

Your Burning Questions Answered!

Here are some common questions that spark curiosity when we chat about the spacing of those familiar DIP pins:

Q1: Is the 0.1-inch spacing an international standard, or is it more localized to certain regions?
A1: That trusty 0.1-inch (2.54 mm) pin pitch for DIP packages is, indeed, a widely embraced international standard. While its roots can be traced back to Imperial measurements, its sheer practical advantages and early, enthusiastic adoption led to its global acceptance across the electronics industry. This beautiful consistency is a major reason why components manufactured anywhere on our planet can, with great confidence, be used together seamlessly.

Q2: Why do some DIP packages come in different widths, like the 0.3-inch and 0.6-inch varieties?
A2: The different widths (which refer to the distance between the two parallel rows of pins) are primarily designed to comfortably accommodate varying numbers of pins and, crucially, different internal chip sizes. For instance, a common 14-pin or 16-pin DIP integrated circuit typically fits perfectly into the narrower 0.3-inch width. Conversely, larger, more complex ICs with a greater pin count, such as 28-pin or 40-pin microcontrollers, often require the more generous 0.6-inch spacing to allow sufficient room for their intricate internal circuitry and delicate wire bonding. It's a clever dance between achieving compactness and ensuring full functionality!

Q3: Would it be possible to use a DIP component if its pin spacing is just slightly off the standard?
A3: While the standard is quite precise for the vast majority of commercial DIP components, you might, on rare occasions, come across an older or highly specialized component with a tiny deviation. For general use, and especially when prototyping on breadboards or standard PCBs, it's very strongly advised to stick to components that meticulously adhere to that 0.1-inch pitch. Attempting to use off-standard components can lead to frustrating alignment problems, difficulty in insertion, and even potential damage to the delicate pins or the circuit board itself. Honestly, it's usually far more trouble than it's worth for the minor benefit!
